How Do Infrared Flame Detectors Detect Fire?

Infrared (IR) flame detectors play a critical role in fire detection systems across a wide range of industries. These detectors are specifically designed to sense the presence of a flame by analyzing infrared radiation. Their fast response time, accuracy, and ability to operate in harsh environments make them ideal for high-risk applications such as petrochemical plants, aircraft hangars, and industrial manufacturing units. In this article, we will explore how infrared flame detectors work, their components, detection mechanisms, types, applications, advantages, and maintenance considerations.

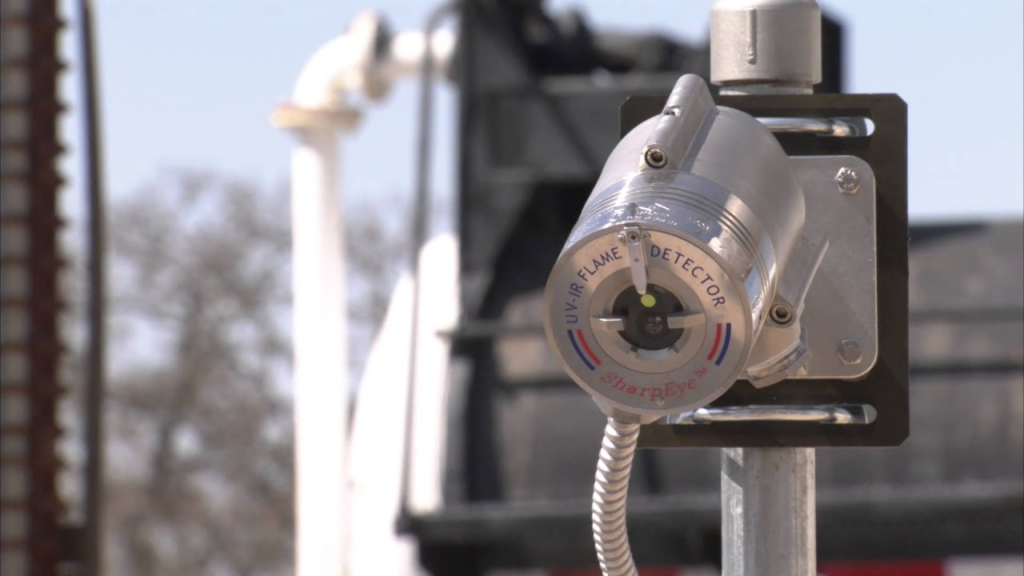

NOTE:- A flame detector was deployed across critical zones, offering precise flame recognition even in harsh conditions. System efficiency was enhanced, and safety standards were met.
Partner with Prolux International LLC to secure your environment with expert flame detection.

Understanding Infrared Radiation and Flames

To comprehend how infrared flame detectors function, it is important to first understand what infrared radiation is. Infrared radiation is a type of electromagnetic radiation with wavelengths longer than visible light but shorter than microwaves, typically ranging from 700 nanometers (nm) to 1 millimeter (mm).

When a flame is produced due to combustion, it emits light across the electromagnetic spectrum, including visible light, ultraviolet (UV) radiation, and infrared (IR) radiation. The IR radiation emitted by a flame has a specific spectral pattern that can be distinguished from other sources of IR radiation, such as sunlight or heated objects. This unique signature is what IR flame detectors are designed to detect.

Components of an Infrared Flame Detector

Infrared flame detectors consist of several key components that work together to detect flames effectively:

• Infrared Sensors: These are photodetectors that are sensitive to specific IR wavelengths, often in the range of 1.0 to 5.0 microns, which corresponds to the peak IR emission of hydrocarbon flames.
• Optical Filters: These filters allow only specific wavelengths to pass through to the sensor, eliminating irrelevant IR signals and reducing false alarms.
• Signal Processor: This electronic component analyzes the received IR signals and determines if they match the temporal and spectral pattern of a flame.
• Alarm and Output Interface: Once a flame is detected, the system sends an alert or activates safety mechanisms such as fire suppression systems.

The Principle of IR Flame Detection

The working principle of an IR flame detector is based on detecting the flickering patterns and spectral characteristics of infrared radiation emitted by flames.

Detection of Flicker Frequency

Flames exhibit a natural flickering behavior in the frequency range of 1 to 20 Hz. IR flame detectors analyze this flickering frequency to distinguish real flames from steady heat sources. By focusing on the time-varying aspects of the IR signal, the detector enhances its selectivity and reduces the likelihood of false alarms.

Multi-Wavelength Detection

Many advanced IR flame detectors use multiple infrared sensors to detect radiation at different wavelengths. This multi-spectral analysis helps differentiate between real flames and non-fire IR sources such as hot machinery or sunlight. For instance, a triple-IR (IR3) flame detector simultaneously monitors three IR spectral bands and compares them to known flame signatures.

Types of Infrared Flame Detectors

Infrared flame detectors can be classified into the following types based on their spectral sensitivity and configuration:

Single IR Flame Detectors

These detectors use a single IR sensor and are relatively simple. While they are cost-effective, they may be more susceptible to false alarms due to their limited discrimination capabilities.

Dual IR Flame Detectors

Dual IR detectors use two sensors tuned to different IR wavelengths. They compare the signals from both sensors to determine if a flame is present. This improves their ability to distinguish between flames and non-flame heat sources.

Triple IR Flame Detectors (IR3)

IR3 detectors use three sensors to monitor three separate IR bands. They offer the highest level of immunity to false alarms and are suitable for critical applications where safety and reliability are paramount. Their detection range and speed are significantly superior to single and dual IR detectors.

Applications of Infrared Flame Detectors

Infrared flame detectors are deployed in a variety of settings where rapid flame detection is essential for protecting life, property, and the environment:

• Oil and Gas Industry: For detecting hydrocarbon-based fires in refineries, offshore platforms, and storage facilities.
• Chemical Plants: To monitor areas where flammable chemicals are processed or stored.
• Power Generation: In turbine enclosures and fuel handling areas.
• Aircraft Hangars: Where fuel vapors and maintenance activities pose a fire risk.
• Warehouses and Industrial Facilities: For general fire protection in high-value or high-risk environments.

Advantages of Infrared Flame Detectors

Infrared flame detectors offer several advantages over traditional flame and smoke detection systems:

• Fast Response Time: They can detect flames within milliseconds, enabling swift action.
• False Alarm Immunity: Advanced IR detectors are less likely to be triggered by non-flame sources.
• Harsh Environment Suitability: They perform well in dusty, smoky, or high-temperature environments.
• Long Detection Range: Particularly in IR3 models, which can detect flames from considerable distances.
• Low Maintenance Requirements: Once installed, these systems require minimal upkeep compared to conventional smoke detectors.

Challenges and Limitations

Despite their advantages, IR flame detectors also have some limitations:

• Line-of-Sight Requirement: The flame must be within the detector’s field of view.
• Environmental Obstructions: Thick smoke, fog, or dust can interfere with detection accuracy.
• Higher Initial Cost: Compared to conventional fire detectors, IR flame detectors are more expensive.

Installation and Maintenance Guidelines

Proper installation and regular maintenance are essential for ensuring the effectiveness of infrared flame detectors.

Installation Tips

• Positioning: Install detectors where flames are most likely to occur and ensure a clear line of sight.
• Coverage: Calculate detection angles and range to ensure adequate coverage of the protected area.
• Avoid Interference: Minimize exposure to potential false alarm sources like sunlight or welding arcs.

Maintenance Practices

• Regular Testing: Perform functional tests at intervals recommended by the manufacturer.
• Cleaning: Clean optical surfaces to prevent dust buildup that can impair sensor performance.
• Calibration: Recalibrate detectors periodically to maintain detection accuracy.

Future Trends in IR Flame Detection

Technological advancements are continually improving the reliability and performance of IR flame detectors:

• Integration with AI: Use of machine learning algorithms to better differentiate between real and false flame signals.
• Wireless Connectivity: Facilitates remote monitoring and diagnostics.
• Compact and Smart Designs: Enhanced portability and integration with building management systems.

Conclusion

Infrared flame detectors represent a vital component in modern fire protection systems. By utilizing the unique characteristics of IR radiation emitted by flames, these detectors can swiftly and accurately identify fire threats in critical environments. Their ability to minimize false alarms while ensuring rapid response makes them indispensable in industries where fire safety is non-negotiable. As technology advances, infrared flame detectors will continue to evolve, offering smarter, faster, and more reliable fire detection solutions for the future.
