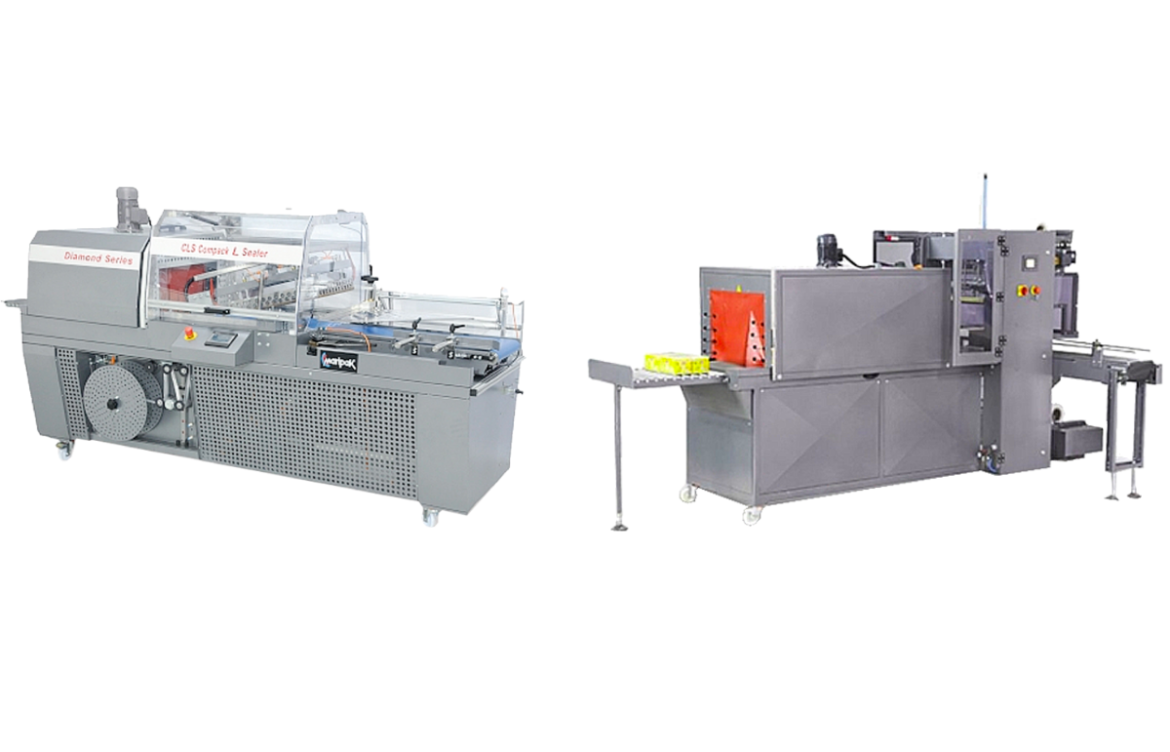

RLS ePro Series Auto Shrink Wrap Machines: Features & Specifications
The RLS ePro Series of auto shrink wrap machines offers a high-performance packaging solution for businesses requiring efficiency, precision, and automation. Designed for medium to high-capacity production lines, these machines streamline shrink-wrapping operations while ensuring high-quality results. Below are the key features, specifications, and technologies that make the RLS ePro Series a reliable choice.
Advanced Servo-Driven Electrical System
The RLS ePro Series is equipped with a servo-driven electrical system that enhances precision and reliability. This system allows for accurate control over the sealing jaw and moving parts, ensuring consistent, high-quality seals.
Key Benefits:
- Provides an economical solution for fully automatic packaging needs
- Easily integrates into existing production lines.
- Features a user-friendly design that simplifies adjustments and maintenance
Automatic Product Detection and Height Recognition
The system features automatic length detection with encoder control and height recognition through photocell sensors. This ensures precise packaging for products of varying dimensions without manual adjustments.
Advantages:
- Ensures consistent packaging quality
- Reduces setup time between different product runs
User-Friendly Touchscreen Control Panel
Operators can manage all machine settings through a color touchscreen panel, providing an intuitive interface for configuring parameters and monitoring operations.
Features:
- Easy navigation for quick setup and adjustments
- Multi-language support for diverse operational needs
- Memory function for storing and recalling settings for different products
Efficient Film Handling and Tension Control
The RLS ePro Series incorporates an automatic film feeding system with tension control, preventing wrinkles and ensuring a smooth wrapping process. The system also includes an automatic trim winder with tension control for efficient waste management.
Benefits:
- Enhances package appearance with precise wrapping
- Reduces material waste through optimal film usage
High-Precision Sealing System
The machine uses a Teflon-coated L-type cutting blade and a hot-jaw sealing system for strong, clean seals. The sealing temperature is PID-controlled and adjustable via the touchscreen panel, accommodating different film materials.
Key Features:
- Works with multiple film types, including polyolefin (POF), polyethylene (PE), and polypropylene (PP)
- Ensures durable seals that maintain package integrity
Adjustable Conveyor and Band Speed
The RLS ePro Series features adjustable conveyor belt speeds, with a maximum of 30 meters per minute, allowing synchronization with different production line requirements. The working height is set at 860mm for ergonomic operation.
Advantages:
- Adapts to various product sizes and production speeds
- Optimizes throughput while maintaining packaging quality
Safety and Compliance Features
Designed for operator safety, the RLS ePro Series includes protective covers, emergency stop functions, and compliance with industry safety standards. The waste wrapping system features a safety cover, and the coil unit is equipped with slides and a safety enclosure to prevent accidents.
Key Safety Features:
- Protective covers that enclose moving parts to prevent injuries
- Emergency stop buttons for immediate machine shutdown
- Compliance with safety and quality standards
Technical Specifications
- Maximum Packaging Dimensions: Width: 350mm, Length: 450mm, Height: 120mm
- Sealer Opening: 160mm
- Band Speed: Up to 30 meters per minute (adjustable)
- Jaw Length: 580mm x 440mm
- Conveyor Belt Width: 400mm
- Minimum Package Width: 50mm
- Maximum Film Coil Width: 650mm
- Film Thickness: 10 to 40 microns
- Compatible Film Types: POF, PE, OPP, CPP, PP
- Maximum Roll Diameter: 300mm
- Compressed Air Requirement: None
- Installed Power: 400V, 50-60 Hz, 6 Amps, 3 Phase
- Power Consumption: Maximum 4 kW, Average 3 kW
- Machine Dimensions (LxWxH): 1240mm x 2080mm x 1890mm
- Pallet Dimensions (LxWxH): 1400mm x 2270mm x 1680mm
- Weight (Net/Gross): 748kg / 828kg
The RLS ePro Series auto shrink wrap machines provide an efficient and reliable solution for businesses looking to automate their packaging process. With advanced features, precise sealing capabilities, and user-friendly operation, these machines enhance productivity while maintaining high packaging standards.
Conclusion
The RLS EPRO Series of auto shrink wrap machines is a powerful solution for businesses seeking efficiency, precision, and reliability in their packaging processes. With advanced automation, high-precision sealing, energy efficiency, and user-friendly controls, these machines offer significant advantages across various industries. Whether you are looking to improve productivity, reduce labor costs, or enhance product presentation, investing in this advanced shrink wrap equipment is a smart decision for long-term success.
