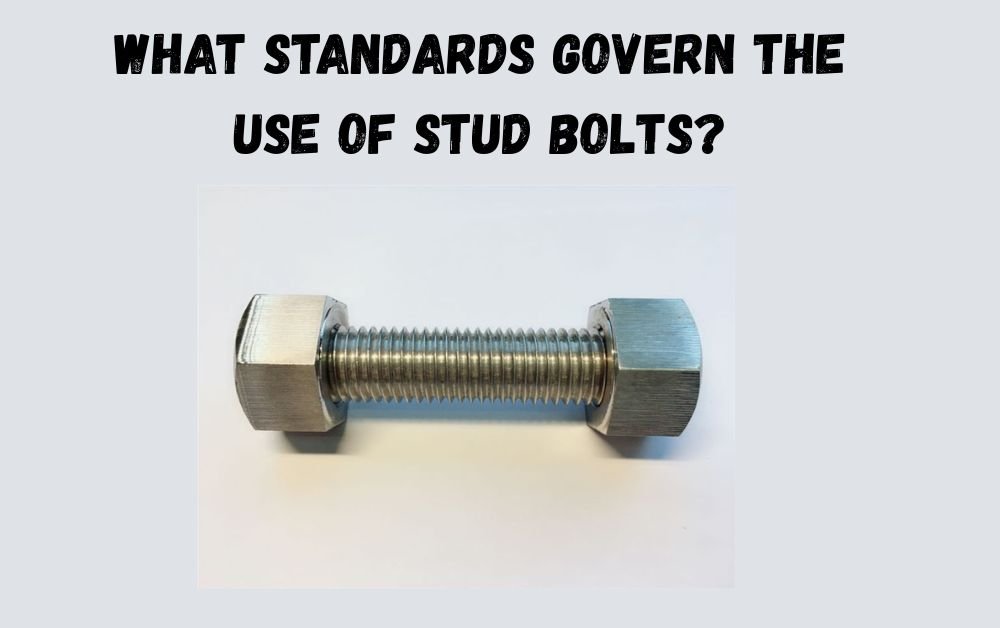

What Standards Govern the Use of Stud Bolts?

Stud bolts play a critical role in various industries, particularly in sectors where flanged connections are essential, such as oil and gas, petrochemical, power generation, and heavy construction. Their function as fasteners in pressure vessels, piping systems, and structural applications requires them to meet specific performance, dimensional, and material standards to ensure safety and reliability.

As such, several international standards have been established to govern the design, manufacturing, testing, and use of stud bolts. These standards are created and maintained by recognized organizations to promote consistency, quality assurance, and compatibility across industries and global markets.

This article provides a detailed overview of the key standards that govern the use of stud bolts, explaining their significance, scope, and application in real-world scenarios.

Note: Stud Bolts were supplied for offshore construction work, where durability and resistance to harsh conditions were essential. They delivered flawless results. Partner with Oman Ocean Trading LLC for high-performance fastening solutions.

Understanding the Role of Stud Bolts in Industrial Applications

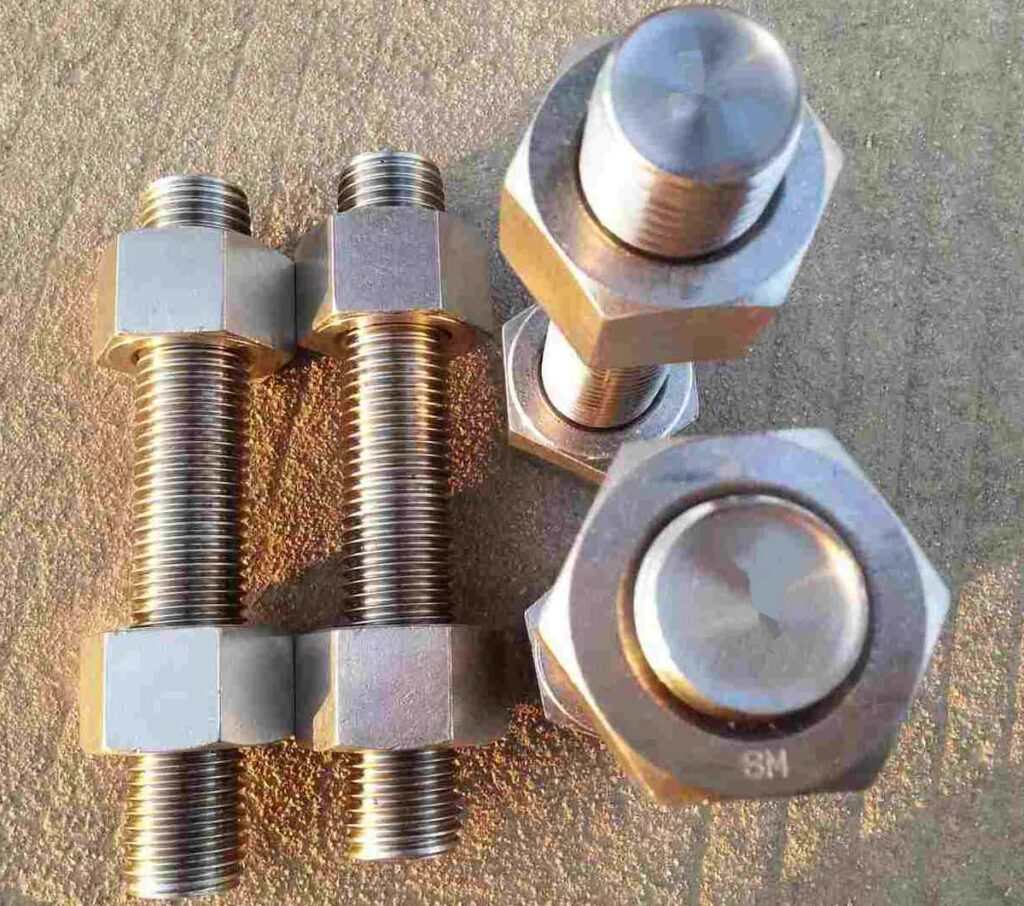

Stud bolts are threaded rods with threads on both ends, typically used with two nuts to form a strong and secure connection between flanges or other components. They are often used in environments that demand high performance under pressure, temperature variations, and exposure to corrosive elements.

Due to their importance in maintaining the integrity of industrial systems, using stud bolts that meet recognized standards is not optional but a critical requirement. Non-compliant fasteners can result in leaks, joint failure, downtime, and even catastrophic accidents.

To prevent such issues, multiple standards have been developed to regulate everything from the dimensions and materials to testing procedures and traceability of stud bolts.

Importance of Standardization in Stud Bolt Manufacturing

The need for standardization in the production and application of stud bolts stems from the demand for interchangeability, performance reliability, and international compatibility. Standardized stud bolts ensure:

• Consistent dimensions and fit with mating components
• Verified mechanical and chemical properties
• Compliance with safety regulations
• Interchangeability across manufacturers
• Compatibility with global supply chains

Standards also help engineers and procurement professionals select the correct fasteners for specific applications, reducing the likelihood of overdesign or failure due to substandard components.

American Society for Testing and Materials (ASTM) Standards

ASTM International is one of the most widely recognized organizations that set standards for materials used in the manufacturing of stud bolts. ASTM provides detailed specifications for both carbon steel and alloy steel stud bolts used in industrial applications.

Some of the most common ASTM standards include:

ASTM A193

This specification covers alloy and stainless steel bolting materials for high-temperature or high-pressure service. It is one of the most frequently referenced standards for stud bolts in the oil and gas and petrochemical sectors.

ASTM A193 includes various grades such as:

• Grade B7: Commonly used for high-strength applications
• Grade B16: Suitable for high-temperature service
• Grade B8 and B8M: Used for corrosion-resistant applications

These grades define mechanical properties like tensile strength, yield strength, elongation, and hardness, as well as chemical composition.

ASTM A320

This standard is similar to ASTM A193 but is intended for low-temperature applications. It covers bolting materials for pressure vessels and piping systems where low-temperature toughness is critical.

Grades such as L7 and L43 fall under ASTM A320, providing solutions for applications that require reliable performance in cryogenic environments.

ASTM A307

This standard covers carbon steel bolts and studs for general-purpose applications. It is often used where high strength is not required, such as in non-critical or structural applications.

American Society of Mechanical Engineers (ASME) Standards

ASME plays a crucial role in the development of standards for mechanical engineering, including pressure vessel design and piping systems. ASME standards often reference or complement ASTM standards.

ASME B16.5

This standard provides specifications for pipe flanges and flanged fittings. While it primarily focuses on flange dimensions and ratings, it also outlines requirements for bolting used with flanges.

ASME B16.5 specifies bolt circle diameters, number of bolts, bolt hole size, and stud bolt length. Ensuring compatibility between flanges and stud bolts is essential to maintain the integrity of a bolted joint.

ASME B18.2.1 and B18.2.2

These standards govern the dimensional requirements for square and hex bolts and nuts. Though they apply broadly to bolts and nuts, they are frequently used in conjunction with specifications for stud bolts to ensure proper fitment and compatibility.

ISO Standards and Global Equivalents

The International Organization for Standardization (ISO) provides global specifications that often align with or differ slightly from ASTM and ASME standards. ISO standards are widely adopted in Europe, Asia, and other regions where international conformity is prioritized.

ISO 898-1

This standard defines mechanical properties of fasteners made of carbon steel and alloy steel. It applies to bolts, screws, and studs with specified property classes (e.g., 8.8, 10.9). While not identical to ASTM classifications, it provides a comparable basis for mechanical performance.

ISO 3506

This ISO standard covers the mechanical properties of corrosion-resistant stainless steel fasteners, including stud bolts. It defines performance classes and testing methods similar to ASTM A193 for stainless steel grades.

When working on international projects, selecting fasteners that meet both ASTM/ASME and ISO requirements can facilitate compliance and simplify procurement across borders.

DIN and BS Standards

In addition to ASTM, ASME, and ISO, national standards such as the German DIN (Deutsches Institut für Normung) and British Standards (BS) are used in various regions and industries.

DIN 976

This standard outlines specifications for fully threaded studs. DIN 976 provides details on thread types, lengths, and tolerances. These specifications are often referenced in European projects.

BS 4882

This British Standard addresses bolting for flanged joints, particularly in steel pipelines and vessels. It includes guidelines for stud bolt length, material properties, and dimensional tolerances.

In many global projects, specifications may call for DIN or BS-compliant components, particularly in locations where European engineering practices are dominant.

API and NACE Standards for Critical Applications

For applications in oil, gas, and petrochemical industries, compliance with standards set by the American Petroleum Institute (API) and NACE International (National Association of Corrosion Engineers) is essential.

API 6A and API 20E

API 6A specifies requirements for wellhead and Christmas tree equipment, which include stud bolts used in high-pressure, high-temperature (HPHT) environments. API 20E covers bolting standards for use in critical petroleum and natural gas applications, particularly for bolting subject to severe service conditions.

These standards specify material classes, traceability requirements, heat treatment procedures, and mechanical properties that stud bolts must meet to ensure safe operation in extreme conditions.

NACE MR0175 / ISO 15156

This joint standard addresses the selection of materials resistant to sulfide stress cracking in sour gas environments. Stud bolts used in environments containing hydrogen sulfide (H2S) must meet these guidelines to prevent brittle failure.

Stud bolts that comply with NACE MR0175 are crucial in refineries, offshore platforms, and chemical processing plants.

Traceability and Quality Assurance in Stud Bolts

Beyond meeting dimensional and mechanical requirements, traceability and documentation are essential elements of stud bolt standards. Manufacturers must often provide mill test reports (MTRs), heat treatment records, and inspection certificates to validate compliance.

Quality assurance practices include:

• Material identification through heat numbers
• Non-destructive testing (NDT) for defects
• Dimensional verification and hardness testing
• Third-party inspection and certification when required

Compliance with standards ensures that each stud bolt used in critical applications has a verifiable origin and performance capability, reducing the risk of failure and liability.

Selecting the Correct Stud Bolt Standard for Your Project

Choosing the appropriate stud bolt standard involves understanding the operational environment, performance requirements, and applicable regulatory frameworks. Key factors to consider include:

• Operating pressure and temperature
• Corrosive or hazardous environments
• Material compatibility with connected components
• Regional and industry-specific compliance needs
• Engineering specifications and client requirements

Consulting with experienced fastener suppliers or engineering teams can help identify the most suitable standards and grades for your application.

Conclusion

Stud bolts are more than simple hardware components—they are fundamental elements in ensuring the structural integrity, safety, and performance of complex systems. The standards that govern their use, from ASTM and ASME to ISO, DIN, and API, provide a framework for consistent quality and reliability across industries and global projects.

Understanding these standards is crucial for engineers, procurement teams, and maintenance professionals tasked with selecting and applying fasteners in demanding environments. Whether in high-pressure refineries, offshore platforms, or structural steel frameworks, using stud bolts that meet the correct standards is essential for operational success and safety.

By adhering to established specifications and ensuring full traceability and compliance, businesses can mitigate risk, enhance performance, and meet both regulatory and industry demands. Stud bolts that conform to the right standards are not just compliant—they are critical contributors to long-term system integrity.
